Quick View Seamless switch User-define output resolution Modular design and hot-pluggable PDF Brochure

Features:

• Seamless switch

IVM Matrix Switcher features seamless switch, no black screen, no blue screen, no flicker, no pause.

• User-define output resolution

Each output port can have its own resolution. That is to way, each port resolution can be the same or different.

• Synchronized audio

Matrix switcher supports video and audio synchronization switch, it also support HDMI, SDI, HDBaseT and Fiber Optic audio debeded output.

• Status Indicator Function

Automatically detect if the input is accepted or not, users can know about the current working status via status indicator.

• Multiple control methods

It supports control by TCP/IP, RS232, and Infrared

• Redundant power supply

Support with dual power supply

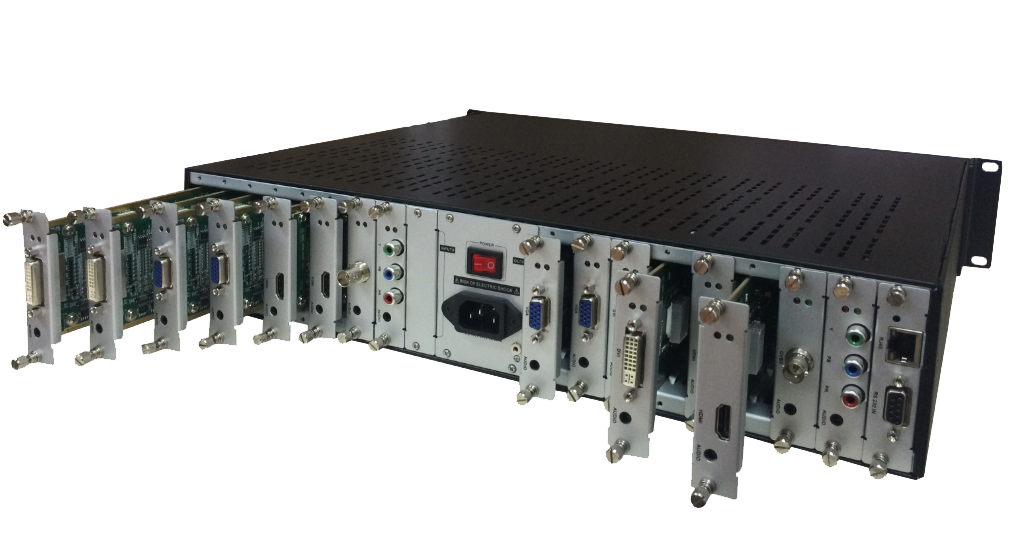

• Modular design and hot-pluggable

The whole system adopts modular design, one port in one board. All the individual units including input board, output board, matrix board, control board, fans, power supply are hot pluggable. The user does not need to open the chassis cover in order to replace the boards.

• Text over input source

Text with user-defined color can be added for HDMI, DVI, CVBS, VGA, YPbPr, HDBaseT, Fiber Optic inputs.

• Simple video wall controller function

Add optional functional output board, single input picture can be showed in the mode of video wall. The size and position of input picture is adjustable.

• Flexible I/O slot

Slot can be put with either input board or output board.

Model	IVM17	IVM36
Description	I/O not more than 17	I/O not more than 36
Slot for control	1	1
Slot for input	1～16	1～35
Slot for output	1～16	1～35
Input board	Support DVI,VGA,CVBS,HDMI,3G-SDI,YPbPr,HDBT,Fiber Optic Port, no need for adapter cable
Output board	Support DVI,VGA,CVBS,HDMI,3G-SDI,YPbPr,HDBT,Fiber Optic Port, no need for adapter cable
Resolution	640x480～1920x1200@60Hz(VESA Standard), 480i~1080p@60hz (HDTV Standard)
Protocols	Support DVI1.0 and HDMI1.3a, support HDCP protocol and EDID management
Color	Support  RGB4:4:4,YUV4:4:4, YUV4:2:2 and YUV4:2:0, expandable
Transmission	10.2Gbps
Transmission Distance	25m (Digital cable), 30m (Analog cable),100m (Cat6),300m(Multi mode),2Km (Single mode)
Control Method	Front panel, IR, RS232, LAN
Working Temperature, Humidity	-20℃ ~ +70℃, 10%~90%
Storage Temperature, Humidity	20℃ ~ +50℃, 10%~80%
Dimensions	440mmX350mmX99mm （2U）		440mmX350mmX223mm （5U）
Weight	About 12.5Kg		About 21Kg
Max consumption	100W		200W
Power supply	100~260V 50/60Hz
Security guarantee	Dual power supply, 7x24
MTBF	10,000 hours
