Features:
- Seamless switch
no switching dealy and pictures loss during Transitions, the switching speed is less than 1 second
- Any one of the 4 sources to any one of the 4 displays
- Support 2x2 Video wall mode
- Any one of the four outputs can be turned off independently
- Each port support both HDMI and DVI inputs
- Support high definition resolutions
1080p@60Hz@36b/pixels, 1080i,720p and other standard video format
- Multiple control methods
Panel button, Remote Control, RS232 Control, IP Control to select the source
- 1U rack design, easy installment
- DC 12V 3A power supply
- Size: L438xW220xH44mm
- Weight:2.80kg
Model |
IV—VWC0404 |
Operating Temperature Range |
0 to +35°C (+23 to +95 °F) |
Operating Humidity Range |
5 to 90 % RH (no condensation) |
Input Video signal |
0.5-1.0 volts P-P |
Input DDC Signal |
5 volts p-p(TTL) |
Video Format supported |
DTV/HDTV:1080P/1080i/720P/576P/480P/576i/480i |
Audio Format supported |
LPCM |
Input ports |
4xHDMI(standard Type A connector) |
Output ports |
4xHDMI(standard Type A connector) |
Matrix mode |
4x4 Seamless switching |
Video wall mode |
2x2 video wall |
Power Consumption |
24wats |
Dimensions(LxWxH) |
438×220×44mm |
Mass (Main Unit) |
2800g |
User Manual: | IV-VWC0404* |

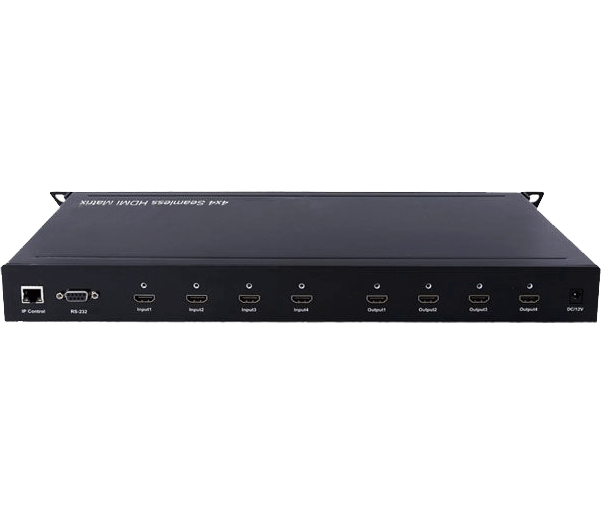

Picture: | Click here to view * |
Product Firmware: | IV-VWC0404 Firmware Version: 1.00 |

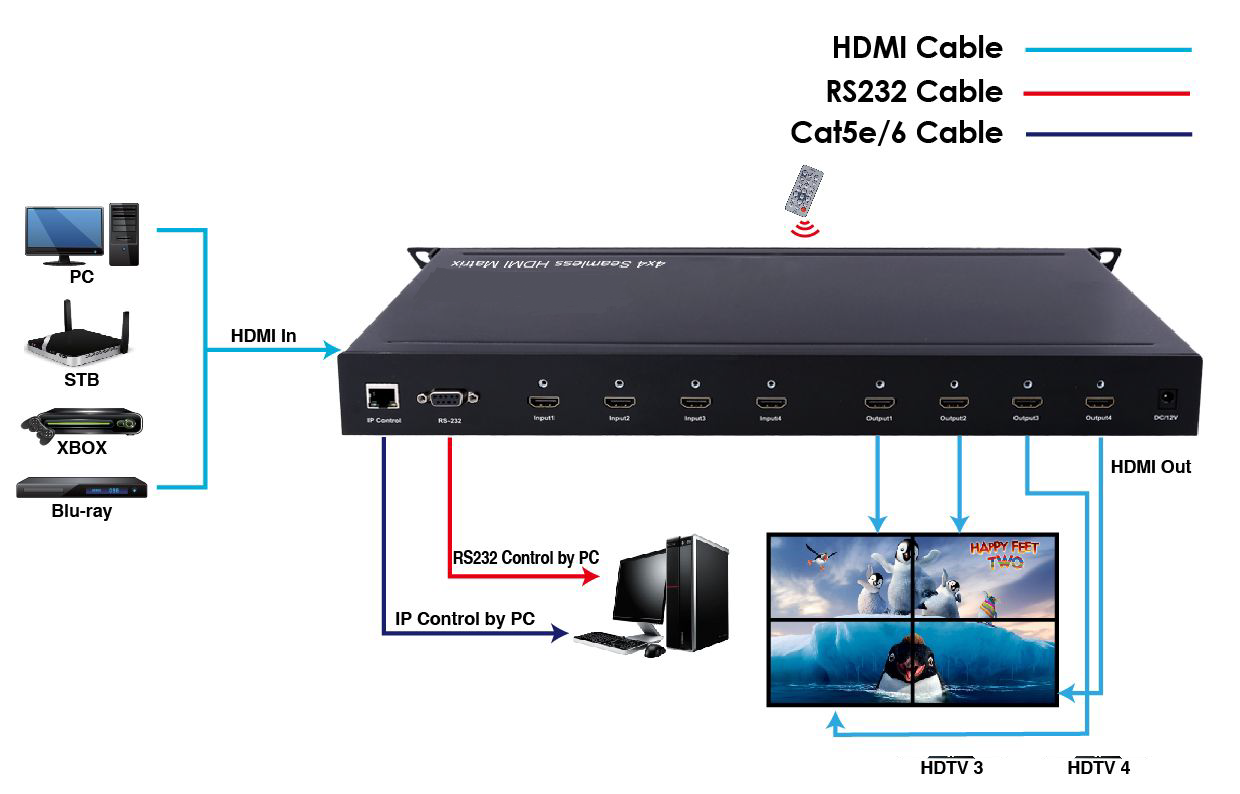

Diagram: | Click here to view |
