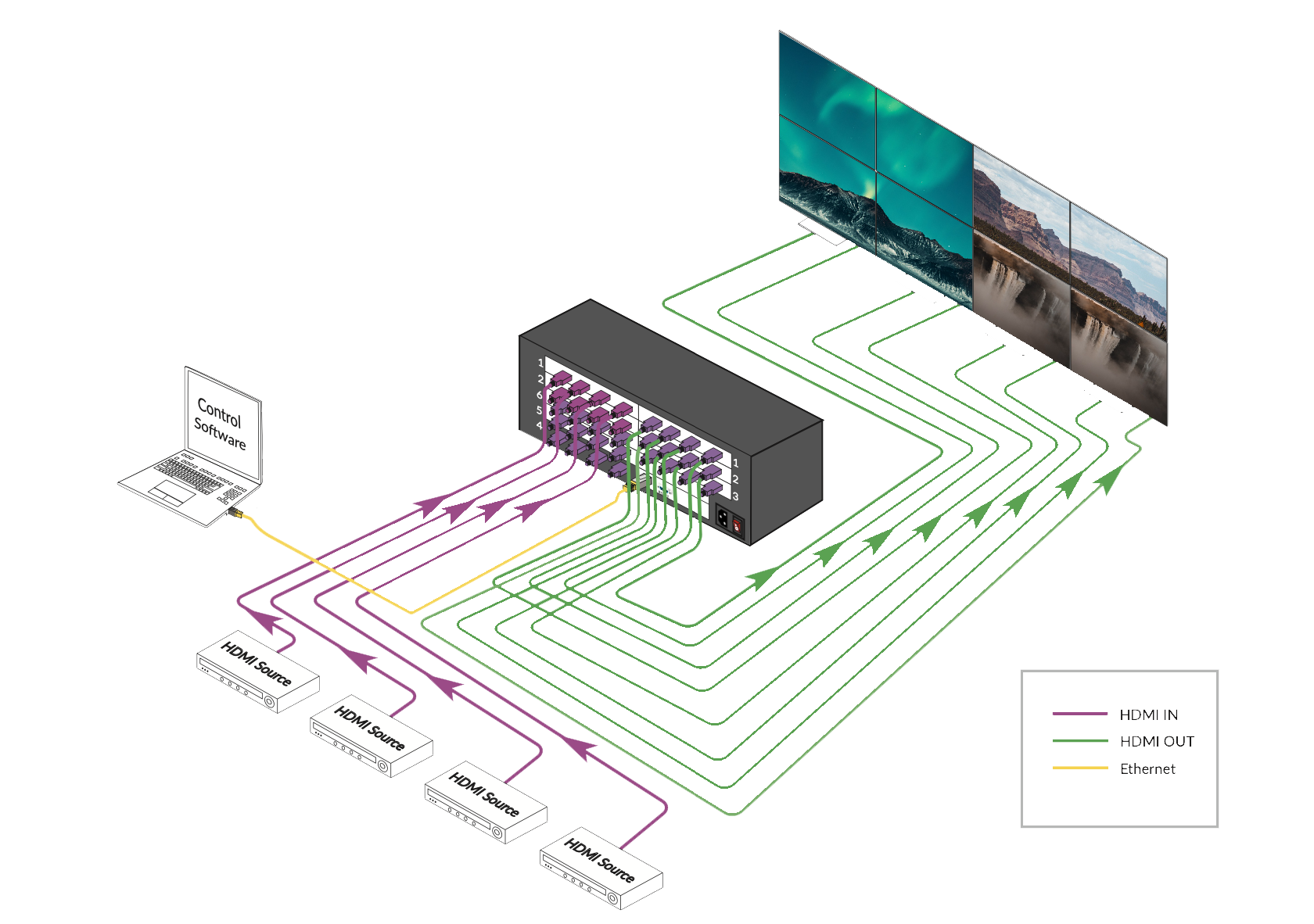

- Diagram
- Downloads
- Matrix switcher functions
- User-defined output resolutions
- Shared 8 windows each output card/strong>
- Support input cropping
- Control 4 walls at the same time
- Third-party protocol control
- Web Browser control
- Inputs and outputs support audio
| VWC-0808 | |
| Video Inputs | |
|---|---|
| |
4xHDMI or 8XHDMI |
| Video Outputs | |
| |
8 to 24 HDMI outputs |
| Control/remote — switcher | |
| | TCP/IP via RJ-45 Female & RS232 via DB9 Female |
| Input formats and resolutions | |
| Resolution range | DVI: VESA: 800 x 600| 1024x768|1280x1024|1600x1200| 1920x1080|1920x1200|2048x1152 HDMI: SMPTE: 480i|576i|720p|1080i|1080p VESA: 800x600|1024x768|1280x1024|1600x1200| 1920x1080|1920x1200|2048x1152 VGA: 800x600|1024x768|1280x1024|1600x1200| 1920x1080|1920x1200 CVBS: SMPTE: 480i|576i YPbPr: SMPTE: 480i|576i|480p|576p|720p|1080i|1080p SDI: SMPTE: 480i|576i|720p|1080i|1080p|1080psf |
| Output formats | |
| Standards | HDMI: HDMI1.3 |
| Output resolutions range | |
Resolution range | SMPTE: 720p|1080p VESA: 800 x 600| 1280x720|1280x1024|1400x1050| 1600x1200|1920x1080|1920x1200|2048x1152| 2560x816|1024x1280|1152x1152|1280x1280|1536x1536|2560x1024| |
| Other information | |
| | AC 100V-264V(Typical 110V/220V),50/60Hz |
| | 200W |
| | -25℃-55℃(Typical 25℃) |
| | 20%-90% |
| | 8.0KG (NW),9KG (GW) |
| | 483mmx300mmx119mm(Product),560mmx390mmx210mm(Carton) |
| User Manual: | VWC-0808* |
| Picture: | Click here to view * |
| Product Firmware: | Firmware Version: 1.00 |
| Diagram: | Click here to view |
| Product Draw (dxf/pdf): | |
| Release Notes: |
* Can’t download the pdf? Click hereDisable the built-in chrome PDF viewer |
